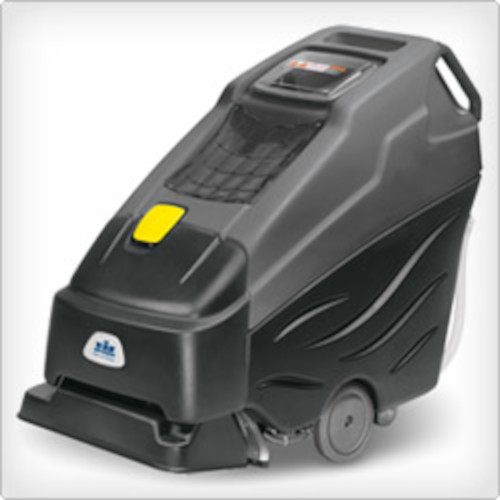

Manual Commodore Duo Extractor

Manual Commodore Duo Extractor

Parts List
Rev Date Rev 08/07/14
Michco Manual# 005291



This manual is for the following models:
Manufacturer
Model		Model Stock#Description
COMDU10086120COMDU Commodore Duo Extractor
COMXDU10086140COMXDU Commodore Duo Extractor
COMDUX10086160COMDUX Commodore Duo Extractor
COMXDUX10086180COMXDUX Commodore Duo
Showing 1 - 35 of 652 | Show All Items on One Page
manual parts manual for this machine
Manual Parts Manual for this Machine
SKU: Parts Manual

or add to cart, then checkout to have manual delivered via a download link provided by email after checkout.
Price: $0.00
Price: $0.00
threaded pin m4x8
Threaded Pin M4X8
SKU: 8.622-378.0
Item on Page-48 Ref# 1
Qty Required-8
This item replaces part#(s): 86223780
Regular Price: $4.29
On Sale For: $4.13
Regular Price: $4.29
On Sale For: $4.13
shaft, 6.2mm brush drive
Shaft, 6.2Mm Brush Drive
SKU: 8.622-417.0
Item on Page-48 Ref# 2
Qty Required-2
This item replaces part#(s): 86224170
Regular Price: $8.58
On Sale For: $8.26
Regular Price: $8.58
On Sale For: $8.26
asm, brush end, non-drive
Asm, Brush End, Non-Drive
SKU: 8.637-307.0
Weight:0.20
Item on Page-48 Ref# 3
Qty Required-2
This item replaces part#(s): 86373070
Regular Price: $75.35
On Sale For: $70.06
Regular Price: $75.35
On Sale For: $70.06
shaft asm, drive 20"
Shaft Asm, Drive 20"
SKU: 8.601-282.0
Item on Page-48 Ref# 4
Qty Required-1
This item replaces part#(s): 86012820
Regular Price: $157.30
On Sale For: $146.26
Regular Price: $157.30
On Sale For: $146.26
ring, 28mm int snap phosphate
Ring, 28Mm Int Snap Phosphate
SKU: 8.622-352.0
Item on Page-48 Ref# 5
Qty Required-3
This item replaces part#(s): 86223520
Regular Price: $8.03
On Sale For: $7.73
Regular Price: $8.03
On Sale For: $7.73
pulley, 5mm htd, 18t, 12.7id
Pulley, 5Mm Htd, 18T, 12.7Id
SKU: 8.622-331.0
Item on Page-48 Ref# 6
Qty Required-1
This item replaces part#(s): 86223310
Regular Price: $41.03
On Sale For: $39.53
Regular Price: $41.03
On Sale For: $39.53
belt, 2s 5mm htd, duo drive
Belt, 2S 5Mm Htd, Duo Drive
SKU: 8.621-525.0
Weight:0.10
Item on Page-48 Ref# 7
Qty Required-1
This item replaces part#(s): 86215250
Regular Price: $80.30
On Sale For: $74.66
Regular Price: $80.30
On Sale For: $74.66
spring tension roller
Spring Tension Roller
SKU: 8.622-466.0
Weight:0.10
Item on Page-48 Ref# 8
Qty Required-1
This item replaces part#(s): 86224660
Regular Price: $13.09
On Sale For: $12.61
Regular Price: $13.09
On Sale For: $12.61
washer, m5 ss iso7093
Washer, M5 Ss Iso7093
SKU: 8.617-333.0
Weight:0.01
Item on Page-48 Ref# 9
Qty Required-1
This item replaces part#(s): 86173330
Regular Price: $5.44
On Sale For: $5.24
Regular Price: $5.44
On Sale For: $5.24
screw, m5-.8 x 20 schcs ss din912
SCREW, M5-.8 X 20 SCHCS SS DIN912
SKU: 8.601-499.0
Item on Page-48 Ref# 10
Qty Required-4
This item replaces part#(s): 86014990
Regular Price: $5.50
On Sale For: $5.30
Regular Price: $5.50
On Sale For: $5.30
holder tension roller
Holder Tension Roller
SKU: 8.621-587.0
Item on Page-48 Ref# 11
Qty Required-1
This item replaces part#(s): 86215870
Regular Price: $44.22
On Sale For: $42.61
Regular Price: $44.22
On Sale For: $42.61
roller
Roller
SKU: 8.601-278.0
Item on Page-48 Ref# 12
Qty Required-2
This item replaces part#(s): 86012780
Regular Price: $128.70
On Sale For: $119.67
Regular Price: $128.70
On Sale For: $119.67
brush, extractor 20"
Brush, Extractor 20"
SKU: 8.623-068.0
Item on Page-48 Ref# 13
Qty Required-2
This item replaces part#(s): 86230680
Regular Price: $194.70
On Sale For: $179.17
Regular Price: $194.70
On Sale For: $179.17
ring, 10mm ext snap, din 471
Ring, 10Mm Ext Snap, Din 471
SKU: 8.622-349.0
Item on Page-48 Ref# 14
Qty Required-3
This item replaces part#(s): 86223490
Regular Price: $3.30
On Sale For: $3.18
Regular Price: $3.30
On Sale For: $3.18
shaft tension roller
Shaft Tension Roller
SKU: 8.622-413.0
Item on Page-48 Ref# 15
Qty Required-1
This item replaces part#(s): 86224130
Regular Price: $23.76
On Sale For: $22.89
Regular Price: $23.76
On Sale For: $22.89
housing complete brushes drive
Housing Complete Brushes Drive
SKU: 8.634-387.0
Weight:0.30
Item on Page-48 Ref# 16
Qty Required-1
This item replaces part#(s): 86343870
Regular Price: $157.30
On Sale For: $146.26
Regular Price: $157.30
On Sale For: $146.26
pulley, 32t, 5mm htd
Pulley, 32T, 5Mm Htd
SKU: 8.622-332.0
Item on Page-48 Ref# 17
Qty Required-2
This item replaces part#(s): 86223320
Regular Price: $78.65
On Sale For: $73.12
Regular Price: $78.65
On Sale For: $73.12
shaft asm, brush drive
Shaft Asm, Brush Drive
SKU: 8.601-279.0
Weight:0.20
Item on Page-48 Ref# 18
Qty Required-2
This item replaces part#(s): 86012790
Regular Price: $201.30
On Sale For: $185.24
Regular Price: $201.30
On Sale For: $185.24
screw, m5 x 12 phflhms ss iso7046
Screw, M5 X 12 Phflhms Ss Iso7046
SKU: 8.617-297.0
Item on Page-48 Ref# 19
Qty Required-4
This item replaces part#(s): 86172970
Regular Price: $5.50
On Sale For: $5.30
Regular Price: $5.50
On Sale For: $5.30
plate, brush drive cover
Plate, Brush Drive Cover
SKU: 8.622-287.0
Item on Page-48 Ref# 20
Qty Required-1
This item replaces part#(s): 86222870
Regular Price: $104.50
On Sale For: $97.17
Regular Price: $104.50
On Sale For: $97.17
extrusion, dual brush 20"
Extrusion, Dual Brush 20"
SKU: 8.621-779.0
Weight:0.00
Item on Page-48 Ref# 21
Qty Required-1
This item replaces part#(s): 86217790
Regular Price: $336.60
On Sale For: $303.27
Regular Price: $336.60
On Sale For: $303.27
housing brushes retainer
Housing Brushes Retainer
SKU: 8.621-939.0
Item on Page-48 Ref# 22
Qty Required-1
This item replaces part#(s): 86219390
Regular Price: $84.70
On Sale For: $78.75
Regular Price: $84.70
On Sale For: $78.75
washer, m5 flt ss iso7089
Washer, M5 Flt Ss Iso7089
SKU: 8.617-335.0
Item on Page-48 Ref# 23
Qty Required-4
This item replaces part#(s): 86173350
Regular Price: $2.75
On Sale For: $2.65
Regular Price: $2.75
On Sale For: $2.65
screw, ka50 x 10 ovhcs stl wn1412 z
Screw, Ka50 X 10 Ovhcs Stl Wn1412 Z
SKU: 8.617-298.0
Item on Page-48 Ref# 24
Qty Required-2
This item replaces part#(s): 86172980
Regular Price: $2.75
On Sale For: $2.65
Regular Price: $2.75
On Sale For: $2.65
spring, brush clip
Spring, Brush Clip
SKU: 8.622-463.0
Item on Page-48 Ref# 25
Qty Required-2
This item replaces part#(s): 86224630
Regular Price: $14.63
On Sale For: $14.09
Regular Price: $14.63
On Sale For: $14.09
screw, 5/16-18 x 1 carr ss
Screw, 5/16-18 X 1 Carr Ss
SKU: 8.627-713.0
Item on Page-48 Ref# 26
Qty Required-10
This item replaces part#(s): 86277130
Regular Price: $7.18
On Sale For: $6.92
Regular Price: $7.18
On Sale For: $6.92
plug, hole, 5mm dia x 12mm l
Plug, Hole, 5Mm Dia X 12Mm L
SKU: 8.635-049.0
Item on Page-48 Ref# 27
Qty Required-3
This item replaces part#(s): 86350490
Regular Price: $5.50
On Sale For: $5.30
Regular Price: $5.50
On Sale For: $5.30
cotter 3/8" ring
Cotter 3/8" Ring
SKU: 8.600-867.0
Item on Page-50 Ref# 1
Qty Required-2
This item replaces part#(s): 86008670
Regular Price: $2.75
On Sale For: $2.65
Regular Price: $2.75
On Sale For: $2.65
pin, clevis 3/8 x 2 stl znplt
Pin, Clevis 3/8 X 2 Stl Znplt
SKU: 8.624-897.0
Item on Page-50 Ref# 2
Qty Required-2
This item replaces part#(s): 86248970
Regular Price: $9.59
On Sale For: $9.24
Regular Price: $9.59
On Sale For: $9.24
actuator, 36 vdc 2.75 stroke
Actuator, 36 Vdc 2.75 Stroke
SKU: 8.601-180.0
Item on Page-50 Ref# 3
Qty Required-1
This item replaces part#(s): 86011800
Regular Price: $843.70
On Sale For: $752.03
Regular Price: $843.70
On Sale For: $752.03
brkt, actuator mount
BRKT, ACTUATOR MOUNT
SKU: 8.609-193.0
Item on Page-50 Ref# 4
Qty Required-1
This item replaces part#(s): 86091930
Regular Price: $66.08
On Sale For: $61.44
Regular Price: $66.08
On Sale For: $61.44
washer, 5/16 flt ss
Washer, 5/16 Flt Ss
SKU: 8.601-067.0
Item on Page-50 Ref# 5
Qty Required-2
This item replaces part#(s): 86010670
Regular Price: $2.75
On Sale For: $2.65
Regular Price: $2.75
On Sale For: $2.65
screw, 5/16-18 x .75 hhcs ss
Screw, 5/16-18 X .75 Hhcs Ss
SKU: 8.627-678.0
Item on Page-50 Ref# 6
Qty Required-2
This item replaces part#(s): 86276780
Regular Price: $5.50
On Sale For: $5.30
Regular Price: $5.50
On Sale For: $5.30
washer 5/16 split lock pltd
Washer 5/16 Split Lock Pltd
SKU: 8.627-913.0
Weight:0.01
Item on Page-50 Ref# 7
Qty Required-2
This item replaces part#(s): 86279130
Regular Price: $2.75
On Sale For: $2.65
Regular Price: $2.75
On Sale For: $2.65
Showing 1 - 35 of 652 | Show All Items on One Page
